Cell Site on Light Trucks





Cell Site on Light Trucks


Cell Site on Light Trucks (CSOLT), for mobile (temporary) indoor BTS applications, typically equipped with an insulated aluminum shelter attached to the truck chassis, (1-2) Will-Burt pneumatic masts, RF antenna mounting kit, MW antenna mounting kit, automatic transfer swith e/w main AC utility connection, AC breaker panel and diesel generator for backup power e/w external fuel tank.  The shelters on our large CSOLTs are typically equipped with a single door (on side), separate generator compartment equipped with a door, insulation, vinyl interior walls, AC breaker panel,(2) air conditioners (e/w heaters), fluorescent lighting, electrical outlets, internal master ground bar, thermal alarms, door alarm, waveguide cable entry ports, RF ground bar and emergency exterior flood light.  The shelters on our small CSOLTs do not include a separate generator compartment, as the generator is normally installed onto an aluminum platform behind the shelter.  Our smaller CSOLTs use a medium duty truck, such as an Ford F-450 or F-550 or equivalent from another manufacturer.  Our larger CSOLTs use a heavy duty truck, such as a Ford F-650 or F-750 or equivalent from another manufacturer.  Note, all electrical equipment and wiring are installed per the National Electric Code.

We can custom design and build these CSOLTs in any size requirements for any application.  In addition, we will integrate the customer owned equipment into this product, creating a turn key solution.  Our standard enclosure warranty is 3 years, our integration warranty is 1 year and all other OEM material, including the truck, is warranted by the original manufacturers.  For inquiries and quote requests, please call us at 888-779-9069 or email us at sales@telecomsitesolutions.com.

For larger applications, we can provide a Cell Site on Light Truck that is equipped with a heavy duty truck (typically a Ford F-650 or equivalent that does not require a Commercial Driver's License), a 20' enclosure equipped with two air conditioners, main AC utility connection, transfer switch, generator in a separate compartment (or in between the shelter and cab), two Will-Burt pneumatic masts (typically 60', but a 76' is available) and a maintenance platform (over the cab) for working on the antennas.

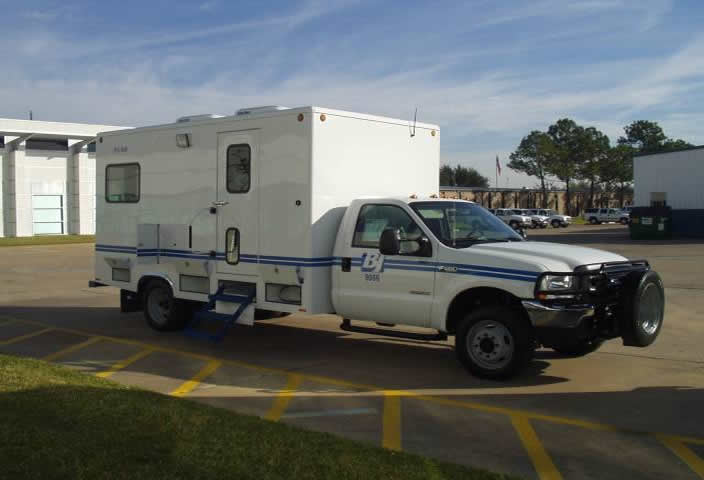

The first set of photos below show two of our small Cell Site on Light Trucks, equipped with a Ford F-450, 12'L x 8'W x 8'H aluminum enclosure equipped with two roof mounted air conditioners, one or two 60' Will-Burt super heavy duty masts (450 lb payload capacity), mast platform, MQ Power 20 KW diesel generator, custom 100 gallon aluminum fuel tank under the generator (inside the removable aluminum tread plate skins) and removable steps (stored inside shelter).  Note, the walls and ceiling are insulated in our shelter, the floor is 1/4" aluminum plate equipped with heavy aluminum bracing for supporting heavy equipment and is covered with thick rubber.  There is no wood in this product, so it eliminates any concern for wood damage.

The second set of photos below show a similar small CSOLT product, also built onto an F-450 chassis, with (2) 60' Will-Burt super heavy duty masts (450 lb payload capacity), an 8'L x 8'W x 8'H shelter and an EPS 30 KW, 3 phase, 127/220 V, 60 Hz generator equipped with (2) side mount 40 gallon fuel tanks.

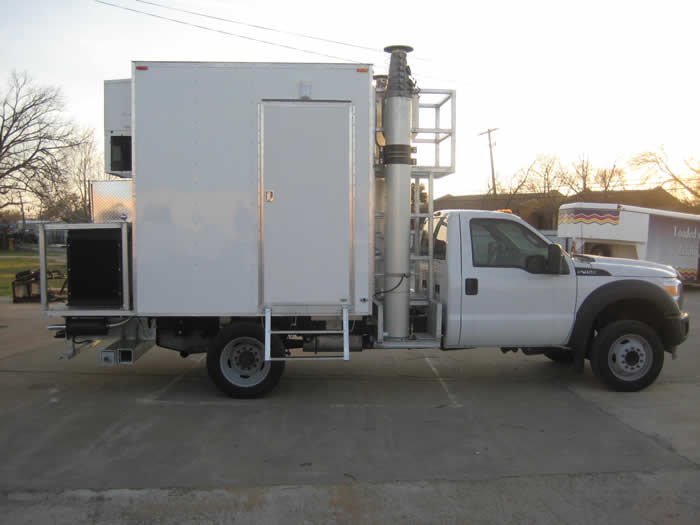

CSOLT equipped with (1) 60' Will-Burt super heavy duty mast:





CSOLT equipped with (2) 60' Will-Burt super heavy duty masts:

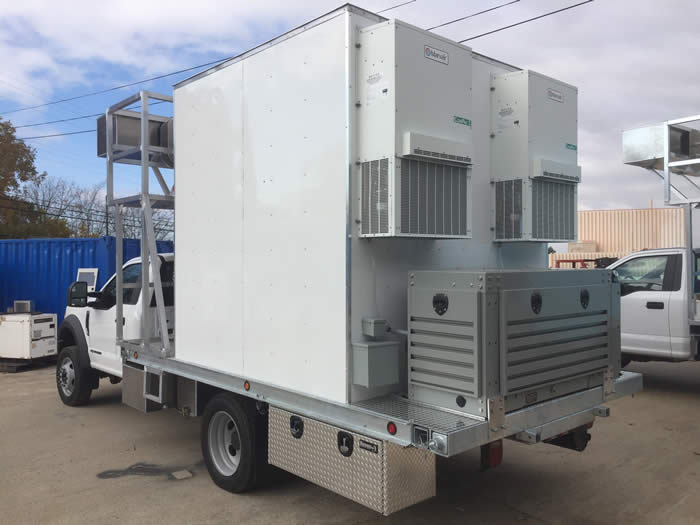

Rear photos of the shelter, showing the roof top air conditioners, 20 KW MQ Power generator and custom 100 gallon aluminum tank under the generator:

Here are some inside photos of one of our truck shelters in the CSOLTs shown above:

CSOLT built onto an F-450 chassis, equipped with (2) 60' Will-Burt super heavy duty masts (450 lb payload capacity), an 8'Lx 8'W x 8'H shelter with (2) 1-ton air conditioners on the upper rear, and an EPS 30 KW, 3 phase, 127/220 V, 60 Hz generator equipped with (2) side mount 40 gallon fuel tanks.  This setup includes a hand held remote and solenoid so that the masts can be operated with it from the maintenance platform.  It also includes a utility shore connection with a 50' power cord, an automatic transfer switch, AC powered lights / outlets and both a 127/220V 3 phase breaker panel for the customer, as well as a 115V 3 phase breaker panelto power our equipment we provided and an internal ring ground.  In addition, it includes a separate 12VDC system with a charger to start the generator and provide 12VDC lights both inside and outside of the vehicle, as well as a 12VDC outlet.



Here are some inside photos of our truck shelter in the CSOLT shown above:
