Cell Site on Wheels





Cell Site on Wheels (Pneumatic or Motorized Lattice)


Cell Site on Wheels (CSOW) for mobile (temporary) indoor BTS applications including a trailer typically equipped with an insulated shelter, (1-2) Will-Burt locking pneumatic masts (typically 60'), RF antenna mounting kit, maintenance platform, MW antenna mounting kit, AC utility connection, transfer switch, AC breaker panel and a diesel generator equipped with an external fuel tank for backup power.  These locking pneumatic masts are offered in extended heights from 30' to 164'; however, for these CSOW applications, 60' is typical, and 76' is the maximum height for the configurations shown in our photos below where the masts are mounted vertically behind the platform.  We can build our CSOW product with 1-2 taller masts, such as the 100' mast (450 lb payload capacity), but the masts are installed in front of the generator and swing over the top of the platform using our custom pivot / winching system in order to be stored in the horizontal position for transport.   We also offer positioners for the MW dish, so it can be adjusted / aligned from the ground, rather than having to lower the mast or move the trailer in order to align it.

Standard trailer equipment includes: all steel / welded construction, galvanized steel grated deck, maintenance platform, RV steps to get into the shelter and also onto the trailer deck, (4) lockable storage compartments, oversized dual axles (8,000 lb rating each; 16,000 lb GVWR), tongue jack, safety chains, recessed spare tire, running lights / reflectors, electric brakes and (4) outriggers with leveling jacks.  Optional equipment includes: an integrated base tank under the trailer deck or an external tank for increased generator run-time capacity, a cable management kit for the mast, a mounting kit for a microwave dish and cable reels to help manage the BTS cables when this product is being transported.  We have our own custom hydraulic lifting system which allows for 100' masts and taller to be used with the shelter without losing any trailer deck space, while allowing for safe transport with the mast in the horizontal position (mast is installed in front of platform)We can provide you with details on this system upon request.

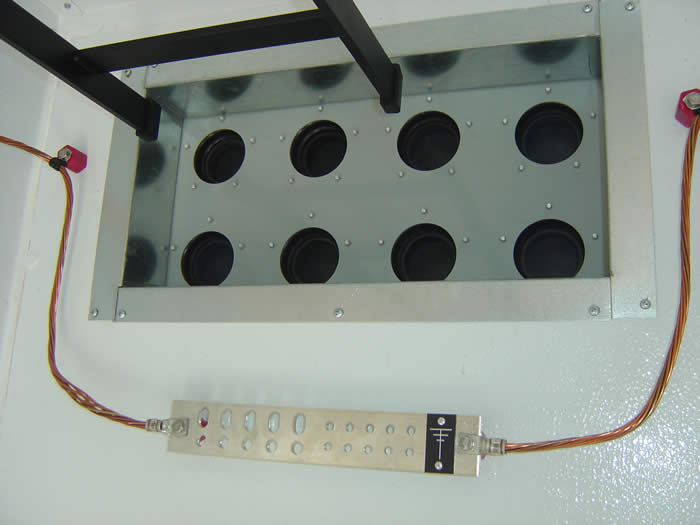

Our shelters are typically equipped with a single door, aluminum or galvanized steel exterior walls, aluminum interior walls (unpainted), AC load center, (1-2) air conditioners equipped with a controller for alarms (with or without an electric strip heater), fluorescent lighting, electrical outlets, internal master ground bar, thermal alarms, door alarm, waveguide cable entry ports and outdoor RF ground bar.  For these trailer applications, we typically fabricate our shelters completely out of aluminum in order to reduce the weight on the trailer, leaving the customer with more weight capacity for their equipment.  A more detailed description of our shelter's construction is provided under the shelters product page.  Note, all electrical equipment and wiring are installed per the National Electric Code.

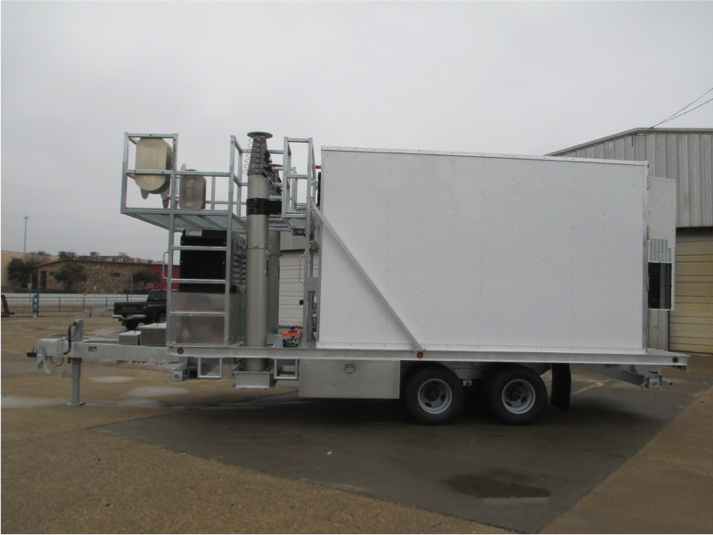

We can also provide Cell Site on Wheels (CSOW) equipped with motorized lattice towers, rather than the masts described above.  These motorized lattice towers are offered in extended heights of 60', 85', 106', 120' and 150'.  For towers up to 120', the trailers come standard with dual 12,000 lb axles and the decks are coverd with either galvanized steel or aluminum tread plate.  In addition, there are (4) galvanized outriggers provided which transport attached to the sides of the trailer.  We have details and photos on our Cell Site Trailers product page regarding or motorized lattice towers and outriggers.  The big difference is that the trailers equipped with our lattice towers and our shelters are larger than any of our other trailers, and have a low boy section behind the tongue and in front of the rear deck in order to install the shelter under the lattice tower.  These trailers are typically equipped with gooseneck tongues for fifth wheels, but they can be setup as bumper pull trailers as well.

We can custom design and build these CSOWs in any size requirements for any application.  In addition, we can integrate the customer owned equipment into this product, creating a turn key solution.  Our standard warranty on the trailer is 3 years, our standard warranty on the shelter is 1 year and our integration warranty is 1 year; all other OEM material is warranted by the original manufacturers.  For inquiries and quote requests, please call us at 888-779-9069 or email us at sales@telecomsitesolutions.com.

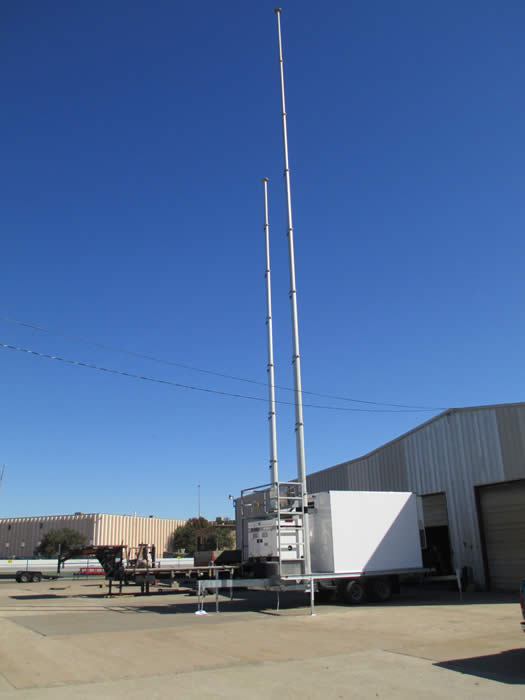

The first set of photos below show one of our Cell Site on Wheels that we shipped to one of our customers.  The top ten photos show the outside features, while the bottom eight photos show the features inside of our shelter provided with this product.  It is equipped with a 20' bed trailer (27' overall) e/w (2) 12,000 lb. axles (24,000 lb. GVWR), 12"L x 8'-0"W x 8'-4"H aluminum shelter e/w (2) 2-ton air conditioners, 36 KW MQ Power generator e/w26.4 gallon internal fuel tank and 150 gallon custom aluminum fuel tank, equipped with a valve to switch between them, installed under the aluminum platform that the generator is installed onto (and then trimmed with aluminum tread plate skins), (1) 76' Will-Burt Super Heavy Duty pneumatic mast (400 lb payload), (1) 50' Will-Burt Super Heavy Duty pneumatic mast (450 lb payload), (4) custom cable reels on the platform, outdoor GFI outlet, 50A shore cable connector inside a weatherproof box (with power cord), 12VDC spot lights on shelter and platform, cable entry port panel, custom aluminum ladder that runs between the masts and shelter in order to support the cables, outdoor RF ground bar, outdoor dawn to dusk light (over the door) and (3) lockable tool boxes (the air compressor is installed inside the tool box on the tongue of the trailer).

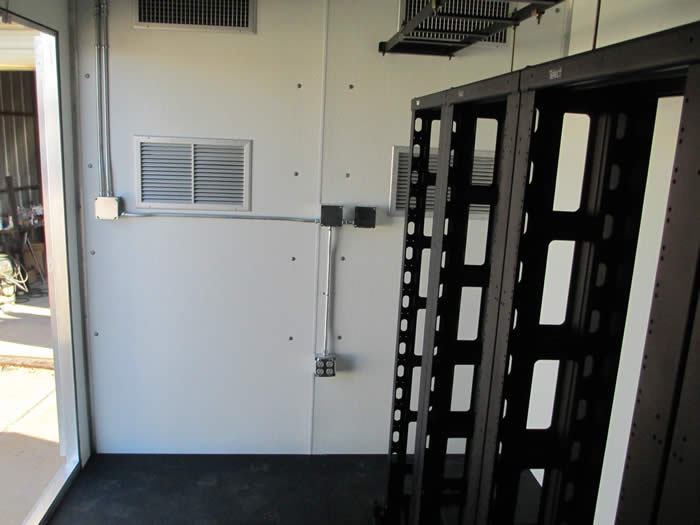

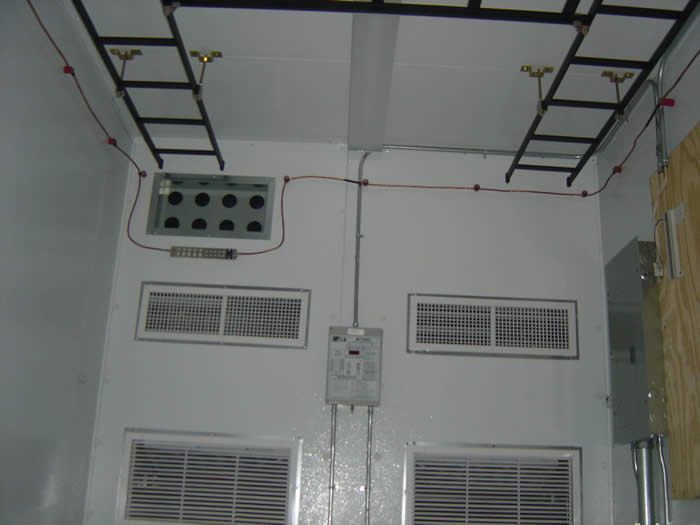

The shelter includes the following items inside: 1/8" aluminum walls / ceiling with the walls covered with white FRP panels, overhead cable ladder, 200A automatic transfer switch e/w AC utility connection, 200A breaker panel e/w TVSS, 50A manel transfer switch / breaker panel to power part of the system when in storage (with 50' power cord), master ground bar, (8) duplex outlets, fluorescent lighting, alarm panel (e/w air conditioner controller and alarm block), emergency light, smoke detector, Motorola R56 compliant halo ground ring, 3/4" rubber floor on top of our 1/4" aluminum floor (there is no wood in our shelter) and (4) Telect seismic racks (6'H for 19" rack mounting).

The second set of photos below showanother one of our Cell Site on Wheels that we shipped to one of our customers.  The top ten photos show the outside features, while the bottom eight photos show the features inside of our shelter provided with this product.  It is equipped with a 20' bed trailer (27' overall) e/w (2) 12,000 lb. axles (24,000 lb. GVWR), 12"L x 8'-0"W x 8'-4"H aluminum shelter e/w (1) 2-ton air conditioner, 56 KW MQ Power generator e/w40 gallon internal fuel tank and 150 gallon custom aluminum fuel tank, equipped with a valve to switch between them, installed under the aluminum platform that the generator is installed onto (and then trimmed with aluminum tread plate skins), (2) 60' Will-Burt Super Heavy Duty pneumatic masts (450 lb payload), (2) custom cable reels on the platform, outdoor GFI outlet, cable entry port panel, custom aluminum ladder that runs between the masts and shelter in order to support the cables, outdoor RF ground bar, outdoor dawn to dusk light (over the door) and (4) lockable tool boxes (the air compressor is installed inside the tool box on the tongue of the trailer).

The shelter includes the following items inside: 1/8" smooth aluminum wallls / ceiling, overhead cable ladder, 200A automatic transfer switch e/w AC utility connection, 200A breaker panel e/w TVSS, master ground bar, (8) duplex outlets, fluorescent lighting, alarm panel (e/w air conditioner controller and alarm block), emergency light, smoke detector, 3/4" rubber floor on top of our 1/4" aluminum floor (there is no wood in our floor).

All of the photos below show a different Cell Site on Wheels that we shipped to one of our customers.  The top six photos show the outside features, while the bottom six photos show the features inside of our shelter provided with this product.  It is equipped with an 18' bed trailer (25' overall) e/w (2) 8,000 lb axles (16,000 lbs GVWR),

10'-7"L x 8'-0"W x 9'-0"H aluminum shelter e/w (2) 3-ton air conditioners, 45 KW MQ Power generator e/w 72 gallon internal fuel tank and 55 gallon external fuel tank, 60' Will-Burt Super Heavy Duty pneumatic mast, 200A Automatic Transfer Switch, 200A distribution panel, outdoor RF ground bar, outdoor duplex outlet and (4) lockable tool boxes (the air compressor is installed inside the tool box below the ATS).

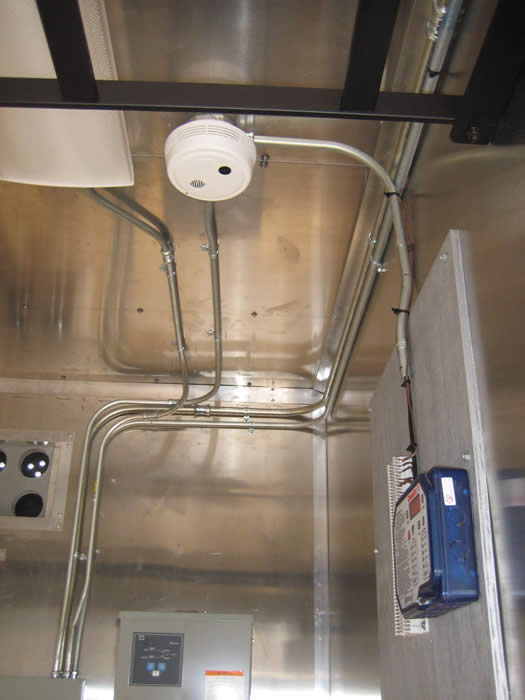

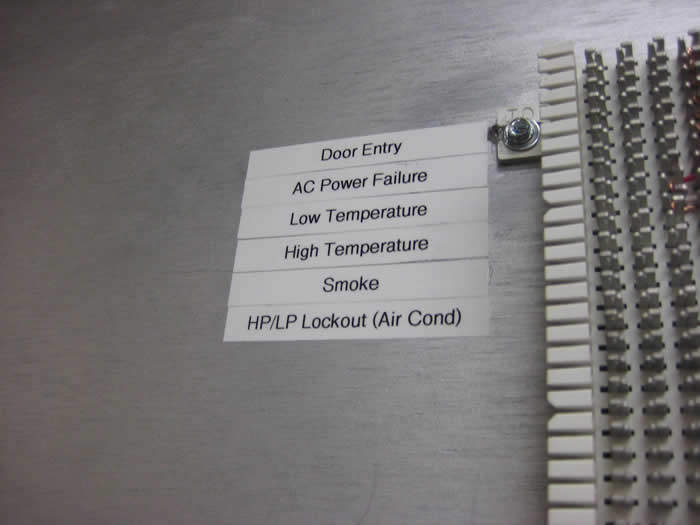

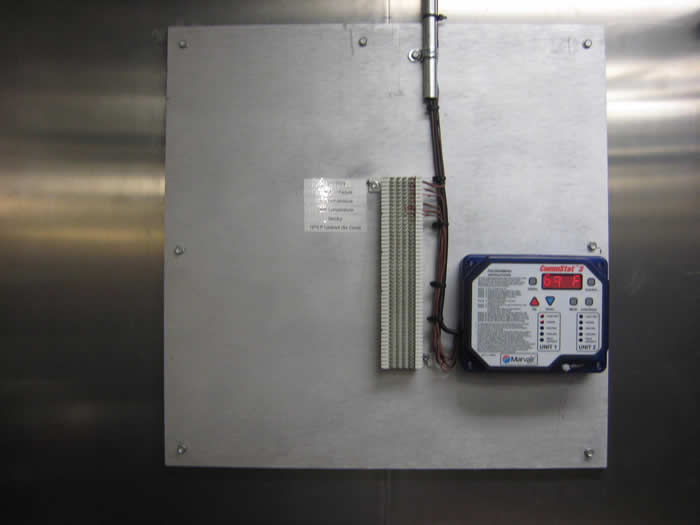

Internal features within our shelter, shown below, include a cable ladder along the length of both walls and one across the middle, central ground all around the internal perimeter for easy equipment grounding, (2) fluorescent lights e/w switch, 200A distribution panel, (6) duplex outlets, internal master ground bar, internal emergency light (battery powered), alarmed smoke detector, telco board equipped with a 66 block with the followng alarms (low temperature, high temperature, open door, smoke and power fail).  Note, all wiring is run in permanent conduit.
