Mobile Van / Hummer Applications:

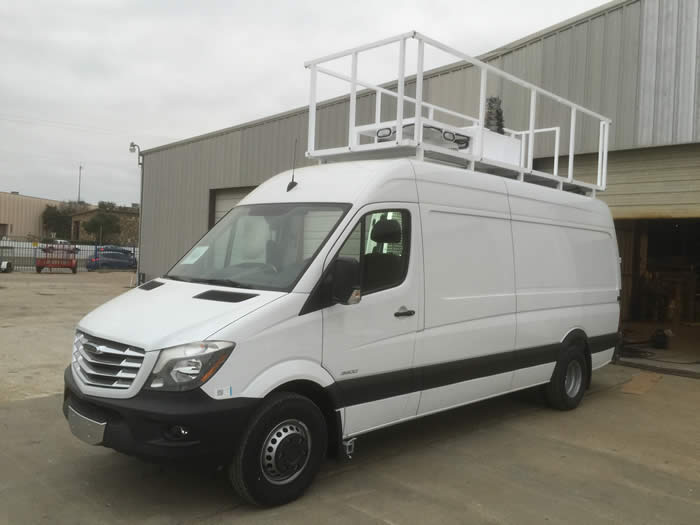

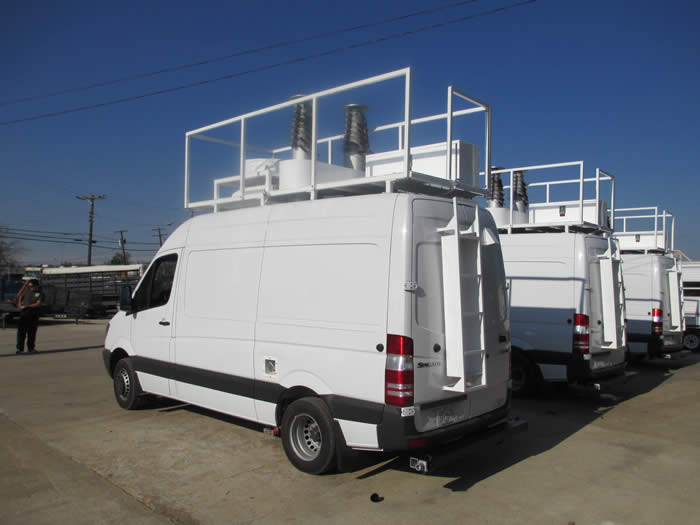

We also offer modifications to cargo vans and Hummers for installation of Will-Burt pneumatic masts, for both cellular, broadband and broadcast applications.  For the cargo vans, we can install the masts through the roof and onto the cargo floor; install the air compressor onto the cargo floor, and make any other mechanical and electrical modifications that are required inside the van, including any conversion required for the application.

We can make these same changes to Hummers as well, including whatever conversion is required for the application..  However, with Hummers, we can install the pneumatic masts either through the roof or onto the spare tire armature on the rear of the Hummer.  There is a size limitation for installation onto the rear armature due to the weight of the mast.

For all of these applications, we can offer either Will-Burt locking or non-locking pneumatic masts.  For most of these van or Hummer applications, the non-locking masts are used, which range in height from 25' up to 56', with payload capacities between 100 - 200 lbs.

Our standard warranty on all fabrication work, as well as all integration work is 1 year and all other OEM material is warranted by the original manufacturers.  For inquiries and quote requests, email us at sales@telecomsitesolutions.com.

The photos below show (2) H2 Hummers that we modified in the following manner:

1. Removed the spare tire from the rear armature.

2. Installed a Hummer roof rack and rear ladder (rear left side) and then installed the spare tire onto this roof rack.

3. Fabricated a custom aluminum mast bracket assembly that we secured to the rear armature.

4. Installed the Will-Burt 6-25 non-locking pneumatic mast onto this custom bracket.

5. Fabricated a custom aluminum basket which we secured to the top of the mast, for holding 40' of Nycoil (1.25" ID), which is used to run the cabling from inside the Hummer to the top of th emast

6. Installed the air compressor, and a custom air tank, into the right rear area inside the Hummer (there is room to install them under the Hummer).

7. Attached a collar assembly to the rear armature (near the end) for securing a drop leg jack, which is used to support the mast when deployed.

8. Fabricated a custom stabilizer bar that attaches to the receiver hitch, which has a drop leg jack on each end, to help support the Hummer when deployed.  We also fabricated an extension tube for the receiver hitch so that the hitch can still be used if the stabilizer bar is installed.  Then we secured both the stabilizer bar and (2) jacks, as well as the receiver extension tube onto the roof rack for transport.

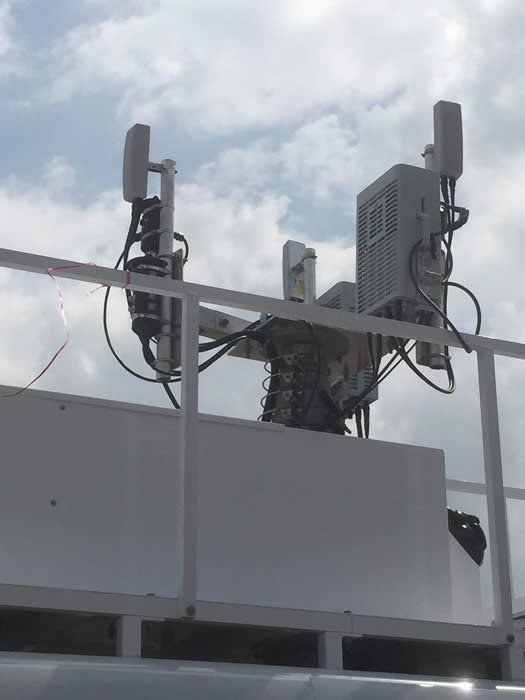

9. Fabricated a custom aluminum antenna kit assembly that secures to the top of the mast, which provides for installation of a radio head inside the main body and installation of a camera on top, as well as attachment of (4) adjustable aluminum armatures equipped with adjustable aluminum end plates for securing various size antennas.  A photo of this custom antenna kit is included at the very bottom of the attached photos.

10. All fabricated items were powder coated black.

11. The system was tested to ensure proper operation prior to shipment.
